Tavistock Vortex Dual Flush Concealed Cistern - Bottom Inlet

The Vortex slimline dual flush concealed cistern by Tavistock has a bottom entry inlet and is provided pre-assembled. This pneumatic dual flush valve 3/6L cistern is ideal for slimline and low height furniture as it is only 135mm deep. The Vortex cistern is an insulated concealed cistern meaning that condensation damaging your units or walls is a thing on the past.

Now with air gap technology.

The Vortex cistern is compatible with all most back to wall pans and furniture units.

This cistern is also known as a Torrent Concealed Cistern TR9001

Vortex Fitting Instructions Click Here

Torrent slimline pneumatic dual flush concealed furniture cistern

• Vortex bottom inlet concealed cistern
• Product code: VOR790
• Manufacturer: Tavistock
• Air gap technology
• 3/6 liter adjustable dual flush options
• Pneumatic flush valve
• Top and front access
• Push-button operation 0.2 - 10.0 bar working pressure range
• Tested before leaving the factory 200,000 cycle endurance tested
• 90-degree flush pipe for a neat installation
• Designed to work with low height furniture
• 135mm deep, so ideal for slimline furniture

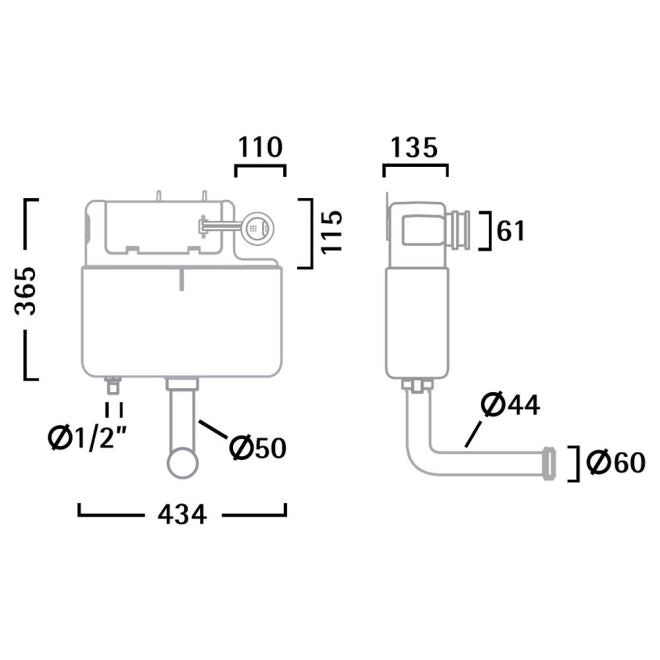

• Cistern width: 434mm Cistern height: 365mm Cistern depth: 135mm
• Material: High-density polyethylene with polystyrene insulation jacket to prevent condensation and allow for quiet re-filling
• Comes complete with chrome push button, black and contactless are optional extras
